UV Backlit Welding Machine TOP4500C

The uv backlit welding machine adopts advanced PID control technology to automatically adjust the power to make the temperature more constant and fluctuate with in ±1 degree. This function can make the welding effect stronger. It can also avoid leakage. This backlit sign seaming machine is more suitable for rapid welding of large roofs.
Application area: Signs & Banners ,Mesh banner, Flex banner,UV front lit and back lit, Bill boards,etc.

Chat Now Send Email

Parameters

Model TOP4500C
Rated Voltage 230V
Frequency 50-60HZ
Power 4500W
Temperature 20-700℃
Speed 1-15m/min
Welding Width 2-4cm
Net Weight 28kg
Gross Weight 30kg/32kg
Dimensions 79*47.5*36.8cm

Appliaction

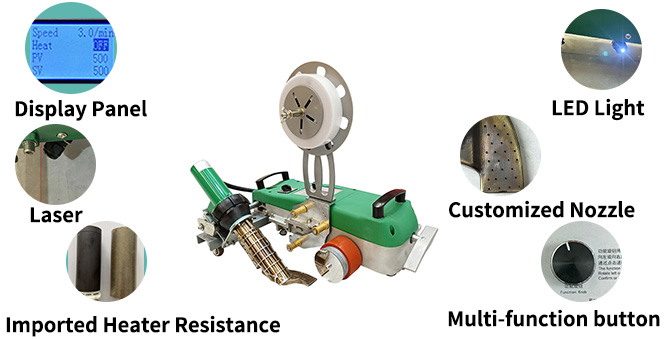

  • Multi-function Button; Display Panel; LED Light; Laser; Imported Heater Resistance; Customized nozzle

    1.Multi-function button control,easy and intelligent operation.
    2.Advanced digital constant temperature control system,temperature fluctuation in +-1 degree.
    3.Laser,LED light,landing gear and handrail,accurate and convenient work.
    4.Imported heating element,longer service life.
    5.Customized nozzle ,satisfy your different demand.

  • Balance System; Brushless Fan; Rope Accessories; Tape; Lifter

    1.Automatic balance device, keep constant welding on uneven floor.
    2.Brushless fan, maintenance-free and longer life.
    3.Dormancy function,protect the heater and save electric power.

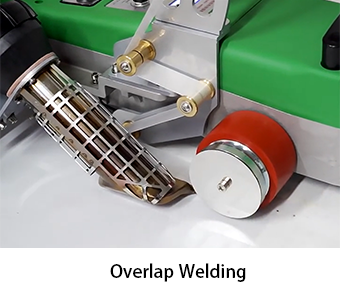

    4.Overlap and seamless welding, saving cost.

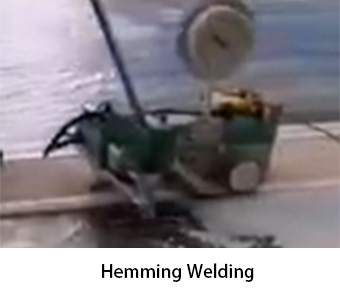

  • Hot air banner welding machine,used for welding all kinds of banners. It can make overlap welding,edge hemming, hemming with rope/pocket, seamless welding,etc.

    Application area: Signs & Banners ,Mesh banner, Flex banner,UV front lit and back lit, Bill boards,etc.
