Banner Welding Machine TOP3400B

The mesh seaming machine adopts advanced PID control technology to automatically adjust the power to make the temperature more constant and fluctuate with in ±1 degree. This function can make the welding effect stronger. It can also avoid leakage. This machine is more suitable for rapid welding of large roofs.
Application area: Signs & Banners ,Mesh banner, Flex banner,UV front lit and back lit, Bill boards,etc.

Chat Now Send Email

Parameters

Model TOP3400B
Rated Voltage 230V
Frequency 50-60HZ
Power 3600W
Temperature 20-670℃
Speed 1-15m/min
Welding Width 2-4cm
Net Weight 24kg
Gross Weight 28kg/32kg
Dimensions 79*47.5*36.8cm

Appliaction

  • Multi-function button; Display panel; LED Light; Laser

    1.Multi-function button control,easy and intelligent operation.
    2.Slow start function,perfect result in welding start.
    3.Advanced digital constant temperature control system,temperature fluctuation in ±1 degree.
    4.Laser,LED light,landing gear and handrail,accurate and convenient work.

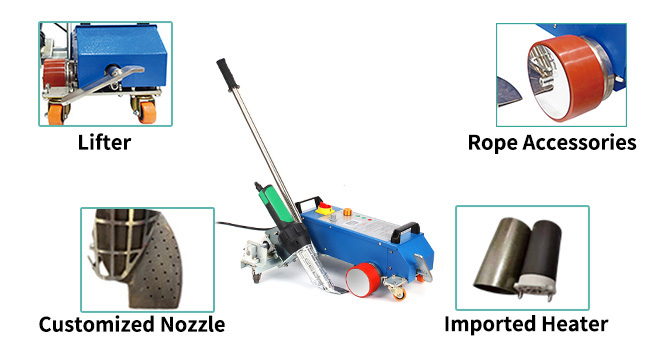

  • Imported Heater; Customized nozzle; Lifter; Rope Accessories

    1.Imported heating element,longer service life.
    2.Customized nozzle ,satisfy your different demand.
    3.Automatic balance device, keep constant welding on uneven floor.
    4.Dormancy function,protect the heater and save electric power.

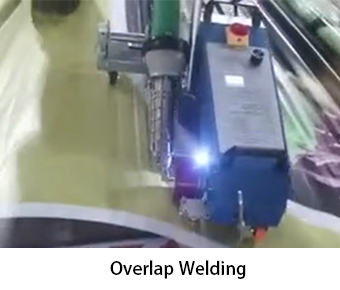

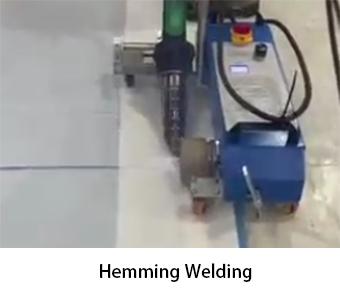

  • Tarpaulin hot air welder,used for welding all kinds of banners. It can make overlap welding,edge hemming, hemming with rope/pocket, seamless welding,etc.

    Application area: Signs & Banners ,Mesh banner, Flex banner,UV front lit and back lit, Bill boards,etc.
